Описание

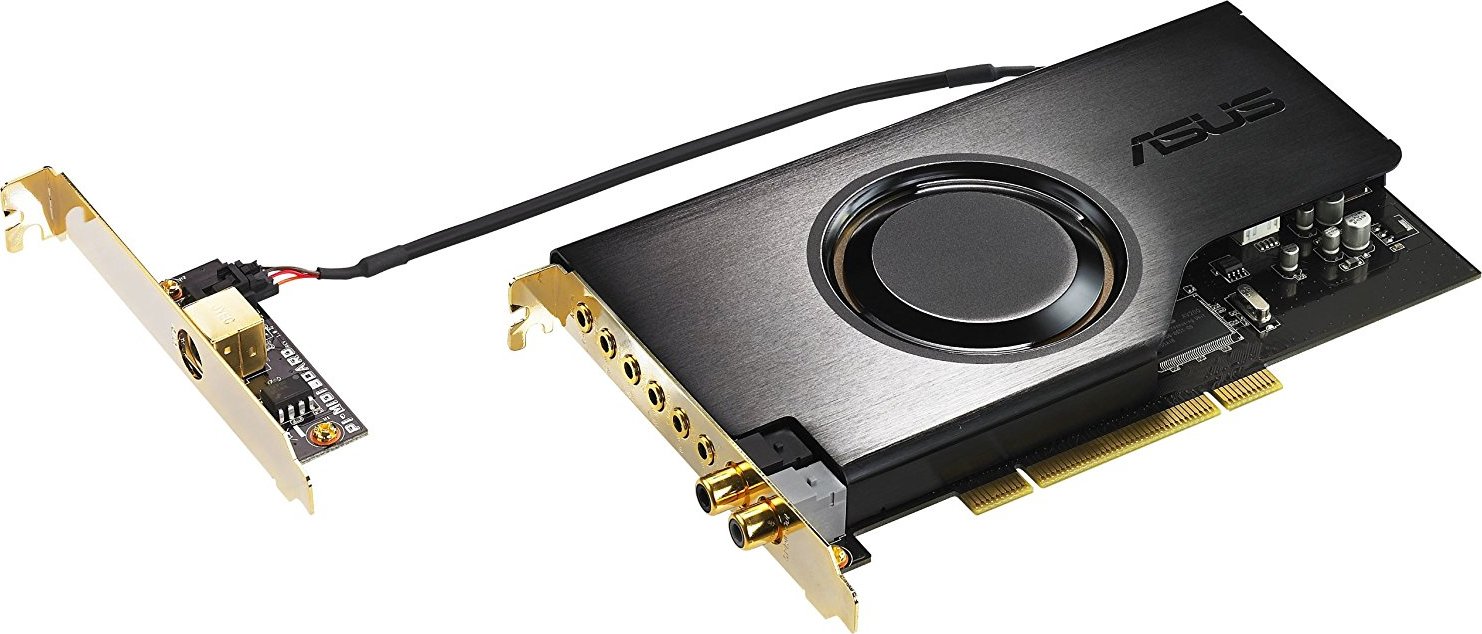

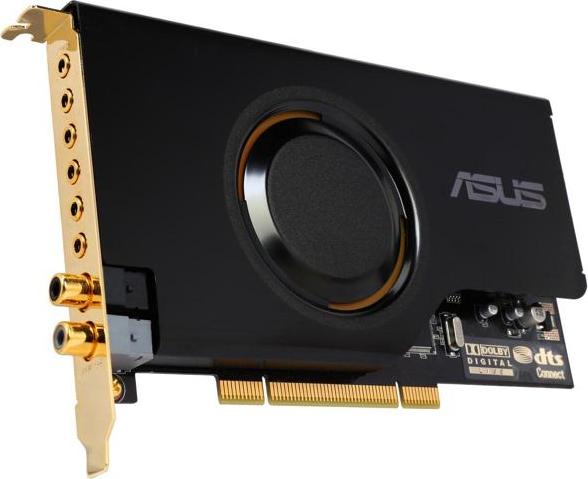

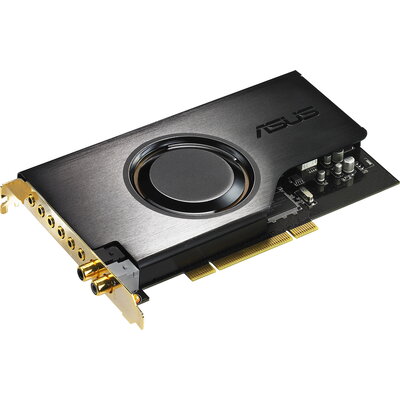

Ultra Fidelity 7.1 PCI Sound Card with Complete Dolby®/DTS® Sound Technologies.
- Unparalleled SNR up to 118db Audio Quality
- High Definition Audio Processing at 192KHz/24Bit Sampling Rates
- ALT technology: Legally backup digital music into non-protected MP3/WMA files
- Dolby and DTS for Complete Digital Home Experience
Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 118 dB
Output THD+N at 1kHz (Front-out): >0.0004 %(-108 dB)
Frequency Response (-3dB, 16bit/44.1KHz input): 10 Hz to 46 KHz
Output/Input Full-Scale Voltage: Unbalanced Output : 2 Vrms (5.65 Vp-p)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit
S/PDIF Digital Output: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
S/PDIF Digital Input: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
ASIO Driver Support: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
