Описание

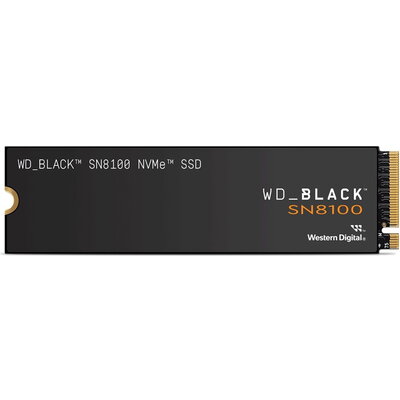

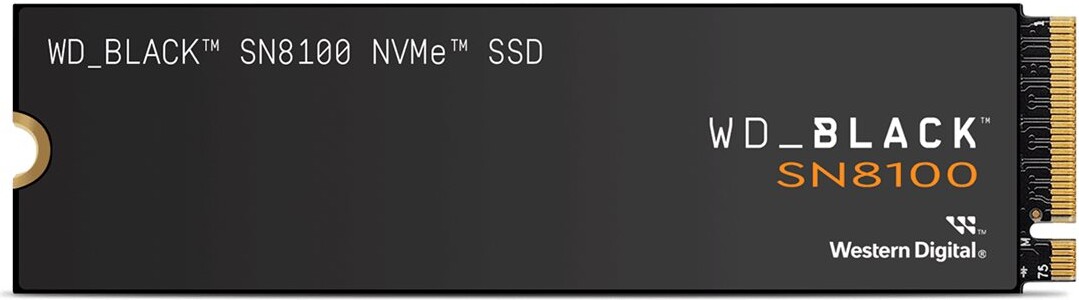

The WD_BLACK SN8100 is an internal solid state drive designed for high-performance storage needs. With a capacity of 4 TB and an internal data rate of 14,900 MBps, this SSD offers rapid data access and efficient performance, making it ideal for gamers and content creators who require quick load times and smooth operation. The drive features a compact M.2 2280 form factor, ensuring a seamless fit into compatible devices. Equipped with DRAM cache and advanced 3D triple-level cell (TLC) NAND flash memory, the WD_BLACK SN8100 provides improved responsiveness and durability. Enhanced with PCI Express 5.0 x4 technology, it supports IOPS, delivering up to 2,300,000 for random reads and 2,400,000 for random writes. This drive is compliant with several international standards, ensuring safety and reliability in various operating conditions.
Rapid performance
Achieve an internal data rate of 14,900 MBps with this SSD, allowing for quicker loading times and smoother operation in demanding applications.
High capacity storage
With 4 TB of space, the WD_BLACK SN8100 provides ample room for large games, media files, and software without compromising performance.
Enhanced reliability
This drive boasts a mean time between failures (MTBF) of 1,750,000 hours, ensuring dependable operation over extended periods.
Advanced encryption
Features TCG Opal Encryption 2.02 for secure data protection, safeguarding sensitive information from unauthorized access.
Temperature resilience
Operating effectively in a temperature range from 0°C to 85°C, this drive is designed to withstand various environmental conditions.
Device Type: Solid state drive - internal
Capacity: 4 TB
Hardware Encryption: Yes
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: M.2 2280
Interface: PCI Express 5.0 x4 (NVMe)
Features: DRAM cache, CMOS-bonded-array (CBA), NVMe 2.0
Width: 22 mm
Depth: 80 mm
Height: 2.38 mm
Weight: 7.5 g
Performance
SSD Endurance: 2400 TB
Internal Data Rate: 14900 MBps (read) / 14000 MBps (write)
Maximum 4KB Random Write: 2400000 IOPS
Maximum 4KB Random Read: 2300000 IOPS
Reliability
MTBF: 1,750,000 hours
Expansion & Connectivity
Interfaces: 1 x PCI Express 5.0 x4 (NVMe)
Compatible Bay: M.2 2280
Power
Power Consumption: 6.5 Watt (average read)
7 Watt (average write)
Software & System Requirements
OS Required: Windows 10 or later
Miscellaneous
Compliant Standards: RoHS, BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 85 °C
Min Storage Temperature: -40 °C
Max Storage Temperature: 85 °C
