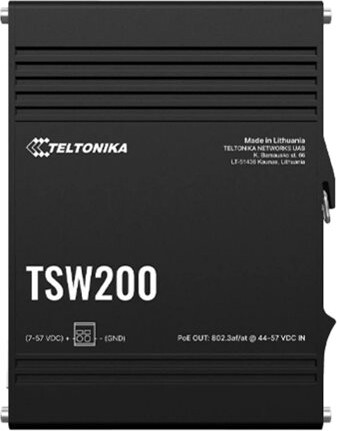

| Device Type: | Switch - 8 ports |
| Enclosure Type: | DIN rail mountable |
| Subtype: | Gigabit Ethernet |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 240 W |
| Performance: | Non-blocking bandwidth: 20 Gbps |
| Capacity: | Packet buffer size: 128 KB |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Features: | Auto-uplink (auto MDI/MDI-X), PROFINET, aluminium housing |
| Compliant Standards (General): | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards (Miscellaneous): | IP30, UKCA, CITC, ANRT, FCC, IC, CB, EN 55032:2015+A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020 |
| Status Indicators: | Power, network, SFP |
| Power Device: | External power adapter (not included) |
| Voltage Required: | DC 7 - 57 V |
| Power Consumption Stand by: | 1.81 Watt |
| Width: | 13.2 cm |
| Depth: | 9.51 cm |
| Height: | 4.42 cm |
| Тегло, kg: | 0.517 |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 75 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
