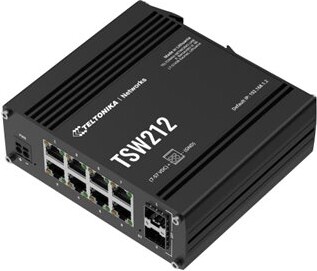

| Device Type: | Switch - 8 ports - Managed |
| Enclosure Type: | DIN rail mountable, surface-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 + 2 x SFP |
| Capacity: | Packet buffer size: 512 KB |
| MAC Address Table Size: | 8K entries |
| Jumbo Frame Support: | 10000 bytes |
| Routing Protocol: | STP, RSTP, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol: | SNMP 3, SNMP 2, DHCP, RADIUS |
| Authentication Method: | RADIUS, TACACS+ |
| Features: | Auto-uplink (auto MDI/MDI-X), EtherNet/IP enabled, PROFINET, LLDP support, VLAN support, MRP support, loop protection, DHCP server, DHCP client, port isolation, EEE, port mirroring, DHCPv6 client, PAM, PSK, QoS, DSCP prioritisation, ToS, rate limit, Storm Control, traffic shaping, Teltonika RMS, FOTA, reset button, ground points, anodised aluminium housing |
| Compliant Standards (General): | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3az |
| Compliant Standards (Miscellaneous): | IP30, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH, NBTC, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN IEC 61000-3-2:2019+A1:2021, EN 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 61000-4-3:2020, AS/NZS 62368-1:2022, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018 |
| RAM: | 128 MB DDR3 SDRAM |
| Flash Memory: | 16 MB |
| Status Indicators: | Power, AUX, Ethernet link/activity, SFP |
| Voltage Required: | DC 7 - 57 V |
| Software Included: | WitchOS |
| Width: | 13.2 cm |
| Depth: | 12.22 cm |
| Height: | 4.42 cm |
| Тегло, kg: | 0.615 |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 75 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
