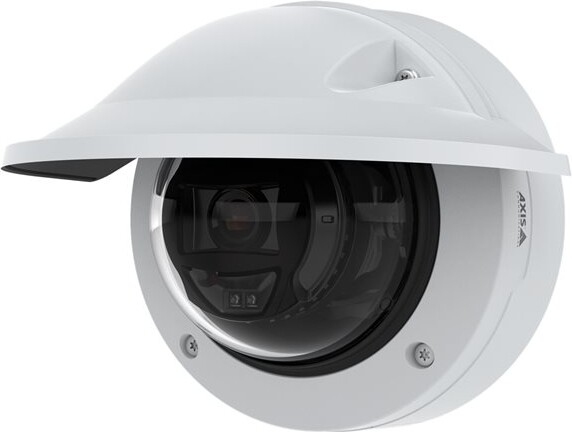

| Device Type: | Network surveillance camera |
| Audio Support: | Yes: two-way audio capability |
| Audio Formats: | PCM, AAC-LC, ADPCM, G.726, LPCM, G.711, OPUS |
| Form Factor: | Dome |
| Camera Mount Type: | Wall mount, ceiling mount |
| Connectivity Technology: | Wired |
| Width: | 14.9 cm |
| Depth: | 14.9 cm |
| Height: | 10.4 cm |
| Тегло, kg: | 0.8 |
| Localisation: | Argentina, Australia, Brazil, China, Europe, Japan, Korea, United States, United Kingdom |
| Type (Camera): | Colour - Day&Night - fixed - outdoor |
| Type (Image Sensor): | 2 MP PS RGB CMOS 1/2.8" |
| Type (Lens Construction): | Vari-focal |
| Digital Video Format: | H.264, MPEG-4 Part 10, H.265, HEVC, MPEG-H Part 2, AVC, MJPEG |
| Max Digital Video Resolution: | 1920 x 1080 |
| Motion Detection: | Yes |
| Exposure Range: | 2 sec - 1/66500 sec |
| Infrared LEDs: | Yes |
| Infrared Distance: | 40 m |
| Video Capture: | 1920 x 1080 @ 60 fps |
| RAM: | 1 GB |
| Flash Memory: | 8 GB |
| Features: | AXIS Object Analytics, Forensic WDR, human detection, Lightfinder 2.0 technology, OptimizedIR, Vehicle Detection, progressive scanning, IR Corrected lens, remote focus, remote zoom, infrared-cut filter, Adaptive Bitrate (ABR), brightness control, contrast control, Corridor mode, defogging, digital PTZ function, dual video stream, exposure zone, image mirror, image overlay, polygon privacy mask, Privacy Mask Function, saturation control, sharpness control, text overlay, Variable Bitrate (VBR), white balance, Zipstream technology, password protection, HTTPs encryption, IP address filtering, TLS encryption protocol, brute force delay protection, centralised certificate management, digest authentication, signed firmware, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Axis Edge Vault, secure boot, Line Crossing Detection, notification picture to E-mail, full duplex audio, active tampering alarm, Audio Detection, exposure control, Pixel Counter Support |
| Optical Zoom: | 2.6 x |
| Focal Length: | 3.4 mm - 8.9 mm |
| Lens Iris: | F/1.8 auto iris (P-Iris) |
| Horizontal Field of View (degree): | 36 - 100 |
| Vertical Field of View (degree): | 20 - 53 |
| Range (degree) (Panning): | -180 to +180 |
| Range (degree) (Tilting): | -75 to +75 |
| Network Interface: | Ethernet 10Base-T/100Base-TX |
| Network Protocols: | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, DHCP, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Zeroconf, SNMP 2c, SNMP 3, IGMPv2, IGMPv3, EAP |
| Supported Memory Cards: | microSD Card, microSDHC Card, microSDXC Card |
| Included Accessories: | Cable gaskets, drill hole template, Resistorx T20 tool L-key, connector guard, terminal block connectors, weathershield |
| Compliant Standards: | IK10, IEEE 802.1x, IP66, NEMA Type 4X, EMC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, CAN ICES-3 Class A, NMB-3 Class A, IEC 62236-4, KCC KN32 Class A, KCC KN35, AS/NZS CISPR 32 Class A, VCCI Class A, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IS13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267 |
| Colour: | White, NCS S 1002-B |
| Power Requirements: | PoE Class 3 |
| Power Device: | 4.8 Watt |
| Software Included: | Windows decoder 1-user licence |
| Service & Support: | Limited warranty - 5 years |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 50 °C |
| Relative Humidity (operating): | 5 - 95% RH (non-condensing) |
