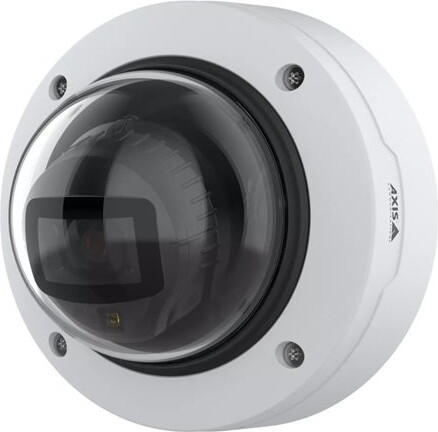

| Device Type: | Network surveillance camera |
| Audio Support: | Yes |
| Audio Formats: | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS |
| Form Factor: | Dome |
| Camera Mount Type: | Wall mount, ceiling mount |
| Connectivity Technology: | Wired |
| Width: | 14.9 cm |
| Depth: | 14.9 cm |
| Height: | 10.7 cm |
| Тегло, kg: | 0.8 |
| Localisation: | United States, United Kingdom, Korea, Japan, India, Europe, China, Brazil, Australia, Argentina |
| Type (Camera): | Colour - Day&Night - fixed - indoor |
| Type (Image Sensor): | 2 MP PS RGB CMOS 1/2.8" |
| Type (Lens Construction): | Vari-focal |
| Digital Video Format: | AV1, H.264, H.265, MJPEG |
| Max Digital Video Resolution: | 1920 x 1080 |
| Motion Detection: | Yes |
| Exposure Range: | 2 sec - 1/37000 sec |
| Infrared LEDs: | Yes |
| Infrared Distance: | 40 m |
| Digital Video Capture Resolution: | 1920 x 1080, 1280 x 800, 1440 x 1080 |
| Frame Rate (max): | 60 frames per second |
| RAM: | 2 GB |
| Flash Memory: | 8 GB |
| Features: | IR Corrected lens, remote zoom, Forensic WDR, Lightfinder 2.0 technology, deep learning processing unit (DLPU), Zipstream technology, digital PTZ function, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), video streaming indicator, brightness control, compression, contrast control, Corridor mode, day/night threshold, defogging, distortion correction function, dynamic text, exposure zone, image mirror, image overlay, Privacy Mask Function, saturation control, sharpness control, white balance, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, secure keystore, signed video, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, OptimizedIR, memory card encryption, NAS-Ready, up to 7 individually cropped out view areas, -95° / +95° rotation, ARTPEC-9 chipset, 180° image rotation, 270° image rotation, 90° image rotation, Automatic Gain Control (AGC), full duplex audio, half duplex audio, speaker pairing |
| Optical Zoom: | 2.9 x |
| Focal Length: | 3.4 mm - 9.8 mm |
| Lens Iris: | F/1.4-2.7 auto iris (P-Iris) |
| Focus Adjustment: | Remote |
| Min Focus Distance: | 1 m |
| Horizontal Field of View (degree): | 32 - 100 |
| Vertical Field of View (degree): | 18 - 52 |
| Range (degree) (Panning): | -190 to +190 |
| Range (degree) (Tilting): | -50 to +80 |
| Network Interface: | Ethernet 10Base-T/100Base-TX |
| Network Protocols: | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Alarm Inputs Qty: | 1 |
| Alarm Outputs Qty: | 1 |
| Supported Memory Cards: | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm: | TLS 1.2, TLS 1.3, FIPS 140-3 |
| Included Accessories: | Terminal block connectors, connector guard, cable gaskets, owner authentication key |
| TAA Compliant: | Yes |
| Compliant Standards: | IEEE 802.1x, PVC-free, BFR-free, CFR free, IEEE 802.3af, EMC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES, UL/cUL, KC, EAC, VCCI, RCM, UKCA, FCC, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, IP54 |
| Colour: | White, NCS S 1002-B |
| Power Requirements: | PoE Class 3 |
| Power Device: | 3.4 Watt |
| Software Included: | AXIS Object Analytics, AXIS Video Motion Detection |
| Service & Support: | Limited warranty - 5 years |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Relative Humidity (operating): | 10 - 85% RH (non-condensing) |
