Описание
- Blazing Speed - 2.5 Gigabit Ethernet unlock the highest performance of your Multi-Gig bandwidth and devices. Whether local data transfer or Internet access, the TX201 is up to the task.
- Versatile Compatibility - With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
- Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
- Comprehensive System Support - Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Стандарти и протоколи IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Интерфейс 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Мрежова медия 2.5GBASE-T/1000BASE-T/100BASE-TX
LED 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Скорости на трансфер 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,
20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Размери (Ш x Д x В ) 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control 802.3x
ДРУГИ
Сертификати FCC, CE, RoHS
Съдържание на пакета

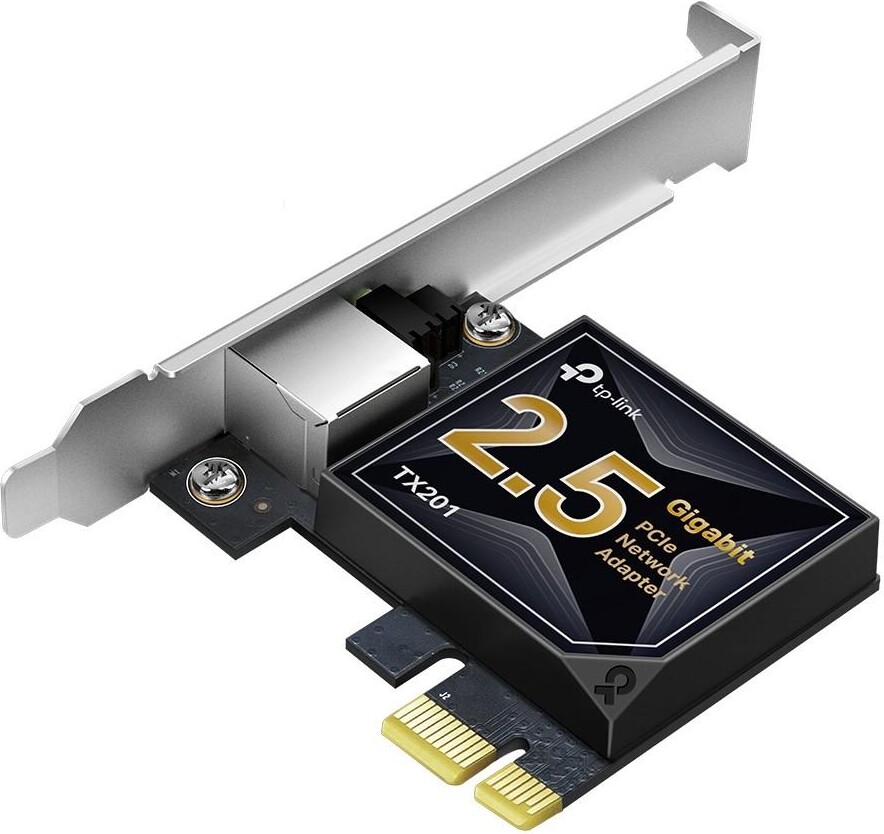

- 2.5 Gigabit PCIe Network Adapter (TX201)
- Standard/Low-Profile Brackets
- Quick Installation Guide
- Resource CD
Системни изисквания Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Околна среда Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
