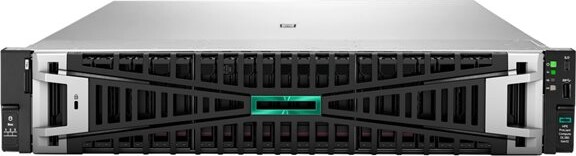

| Type (General): | Server |
| Type (Hard Drive): | No HDD |
| Type (Storage Controller): | 1 x RAID - OCP 3.0 |
| Type (Optical Storage): | No optical drive |
| Product Form Factor: | Rack-mountable - 2U |
| Built-in Devices: | Led panel |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 1-way |
| Hot-Swap Bays Qty: | 8 |
| Localisation: | Region: Europe |
| CPU: | Intel Xeon 6505P |
| Clock Speed: | 2.2 GHz |
| Max Turbo Speed: | 4.1 GHz |
| Number of Cores: | 12-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| Processor Main Features: | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP, 24 Threads |
| Installed Size (Cache Memory): | L3 Cache - 48 MB |
| Installed Size (RAM): | 64 GB (installed) / 8 TB (max) |
| Cache Per Processor: | 48 MB |
| Technology: | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed: | 6400 MT/s |
| Rated Memory Speed: | 6400 MT/s |
| Form Factor: | DIMM 288-pin |
| Slots: | 32 (Total) / 30 (empty) |
| Features: | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features: | 2 x 32 GB |
| Storage Controller Name: | HPE MR408i-o Gen11 SPDM |
| Channel Qty: | 8 |
| Buffer Size: | 4 GB |
| Monitor Type: | None. |
| Video Memory: | 16 MB |
| Video Interfaces: | VGA |
| Ethernet Controller: | Broadcom BCM57416 |
| Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Compliant Standards: | ACPI 6.5, PCIe 5.0, SMBIOS 3.7, UEFI 2.10, UEFI Class 3, Redfish API, AES, TLS v1.2, DMTF, APML, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, WEEE 2002/95/EC, ErP Lot 9, IPv6 Ready |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Power Provided: | 1000 watt |
| 80 PLUS Certification: | 80 PLUS Titanium |
| OS Provided: | No operating system |
| Software: | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 4.0 |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site |
| Width: | 72.7 cm |
| Depth: | 8.75 cm |
| Height: | 44.8 cm |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% RH (non-condensing) |
