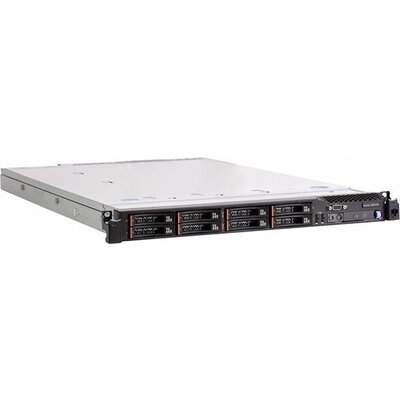

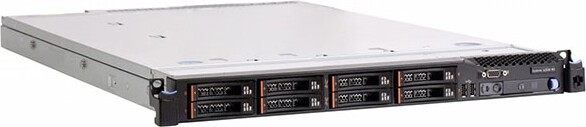

Сървър IBM System x3550 M3 - Intel Xeon E5606, 16GB RDIMM RAM, 2x146GB HS SAS - Refurbished

Описание

The IBM® System x3550 M3 builds on the latest Intel Xeon processor technology with extreme processing power and superior energy-management and cooling features. With twice the performance of previous generations and a flexible, energy-smart design that integrates low-wattage components, the x3550 M3 can help you meet demanding workloads at a lower cost per watt.

Performance

The x3550 M3 offers numerous features to boost performance and reduce costs:

• Up to two 6-core Xeon 5600 series processors offering superior performance. Xeon 5600 series processors offer up to 54% better performance than the previous generation 5500 series processors (workload dependent).
• Eighteen DIMMs of registered 1333 MHz DDR3 ECC memory provide speed, high availability, and a memory capacity of up to 288 GB.
• High-performance 6 Gbps SAS RAID controllers and 15K RPM 6 Gbps SAS disk drives in a variety of capacities to suit your local storage requirements.
• The use of solid-state drives (SSDs) instead of or along with traditional spinning drives (HDDs) can significantly improve I/O performance. An SSD can support 20,000 I/O operations per second (IOPS) whereas a typical HDD handles fewer than 500 IOPS.

The x3550 M3 has the ability to grow with your application requirements with these features:

• Very high density computing in a 1U dual-socket server.
• A choice of 4-core or 6-core processors with clock rates from 1.6 GHz to 3.6 GHz.
• 18 DIMM sockets allowing memory expansion of up to 288 GB.
• A choice of power supplies including 460 W, 675 W AC or DC, or energy-efficient 675 W.
• Five USB 2.0 ports available - two front, two rear, and one internal for an embedded hypervisor.
• Storage bay flexibility: Up to eight hot-swap 2.5" drive bays for SAS or SATA HDDs, or solid-state drives (intermixing supported); or four 2.5" bays plus an internal optical drive bay.
• Direct-attach SAS storage with the EXP2512, EXP2524, and EXP3000 storage enclosures is supported. IBM System Storage servers, including network-attached storage (NAS), and iSCSI or Fibre Channel-attached storage, can also be attached.
• The x3550 M3 provides two PCI Express (PCIe) 2.0 x16 I/O slots for increased network or storage connectivity.

Powerful systems management features simplify local and remote management of the x3550 M3:

• The x3550 M3 includes an Integrated Management Module (IMM) to monitor server availability, perform Predictive Failure Analysis, and trigger IBM Systems Director alerts.
• An optional Virtual Media Key enables additional systems management capabilities, including web-based out-of-band remote control (keyboard video and mouse), remote optical drive support, Windows “blue screen” error capture, and support for LDAP and SSL protocols.
• Text Console Redirection support allows the administrator to remotely view x3550 M3 text messages over Serial or LAN connections.
• Integrated industry-standard Unified Extensible Firmware Interface (UEFI) next-generation BIOS. New capabilities include:
• Human readable event logs — no more beep codes.
• Complete out-of-band coverage by the Advance Settings Utility to simplify remote setup.
• A complete setup solution, allowing adapter configuration functions to be moved into UEFI.
• Integrated Trusted Platform Module (TPM) 1.2 support.
• Industry-standard AES NI support for faster, stronger encryption.
• Integrated IPMI 2.0 support alerts IBM Systems Director to anomalous environmental factors, such as voltage and thermal conditions. It also supports highly secure remote power control using data encryption.
• IBM Systems Director is included for proactive systems management. IBM Systems Director comes with a portfolio of tools, including IBM Systems Director Active Energy Manager, IBM Service and Support Manager, and others. IBM Systems Director also offers extended systems management tools for additional server management and increased availability. When a problem is encountered, IBM Systems Director can issue administrator alerts via email, pager, and other methods.
• IBM Systems Director Active Energy Manager provides advanced power management features with actual real-time energy monitoring, reporting, and capping features.

IBM System x3550 M3 Server - Second Hand

Processor - 2 Sockets

Quad-core Intel Xeon E5606

Chipset

Intel 5520 Chipset

Memory

16GB DDR3 RDIMMs

Up to 48GB with 4GB DDR3 UDIMMs

Memory Protection

ECC

ChipKill (for x4-based memory DIMMs)

Memory Mirroring

Memory Sparing

Drive Bays

Disk Drive Bays:

2x 146GB 2.5" HS SAS

UP to 8 x 2.5" hot-swap SAS/SATA HDDs or SSDs

Maximum Internal Storage

Up to 7.2TB with 900GB SAS HDDs

Up to 8.0TB with 1TB SATA HDDs

Up to 1.6TB with 200GB SSDs

RAID Support

RAID 0, 1, 1E with ServeRAID-BR10il v2 or M1015

RAID 0, 1, 5, 10, 50 with M5014 or M5015

Network Interfaces

Integrated 2Gb Ethernet ports

2 x ports on optional Gigabit Ethernet with Ethernet Daughter Card

PCIe Expansion Slots

Up to 3 slots (1 Slots Dedicated to RAID controller)

Slot 1: PCIe 2.0 x16, Low-profile

Slot 2: PCIe 2.0 x16, full-heighjt, half-length

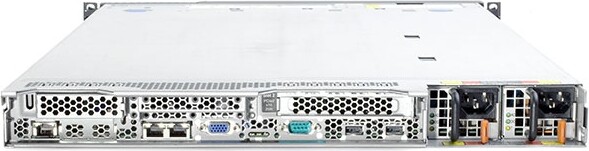

External Ports

Front

2 x USB 2.0

1 x DB-15 Video

Rear

2 x USB 2.0

1 x DB-15 Video

1 x DB-9 Serial

1 x RJ-45 Systems Management

4 x RJ045 Gigabit Ethernet (2 standard, 2 optional)

Internal

1 x USB for embedded hypervisor

Cooling

IBM Calibrated Vectored Cooling™ with 6 counter-rotating hot swap fans with N+1 redundancy

Power Supply

Redundant hot-swap 460 W AC high efficiency (HE) AC power supplies with 90%+ efficiency

Systems Management

UEFI

IBM Integrated Management Module (IMM)

Predictive Failure Analysis

Light Path Diagnostics

Automatic Server Restart

IBM Systems Director and IBM Systems Director Active Energy Manager

IBM ServerGuide

Chassis

Enclosure

Height: 1.7" (43mm)

Width: 17.3" (440mm)

Depth: 28.0" (711mm)

Weight: 28lbs (12.7kg)
