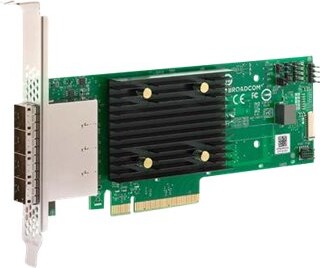

| Device Type: | Storage controller - plug-in card - low profile |
| Host Bus: | PCIe 4.0 x8 |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Hard drive, solid state drive |
| Channel Qty: | 16 |
| Max Storage Devices Qty: | 16 |
| Processor: | Broadcom SAS3816 |
| Interfaces: | 4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (internal) |
| Included Accessories: | Low-profile bracket |
| Features: | Disk Data Format (DDF) support, CacheCade, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, JBOD support |
| Compliant Standards: | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| OS Required: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 7.9 |
| Service & Support: | Limited warranty - 1 year |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
