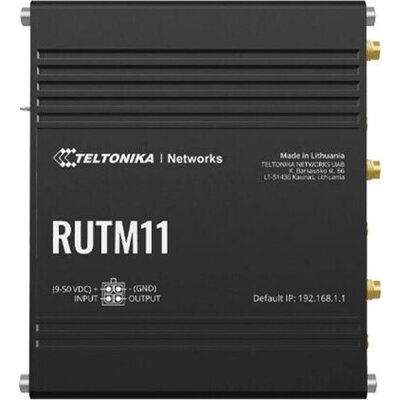

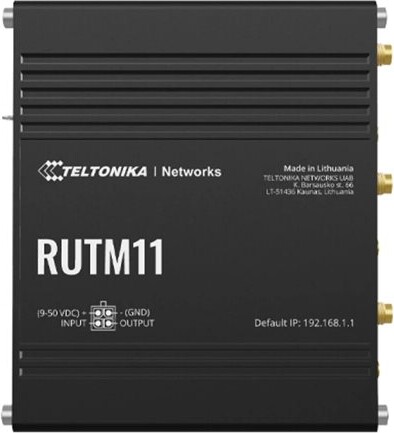

| Device Type: | Wireless router - 4-port switch (integrated) |
| Enclosure Type: | DIN rail mountable, wall-mountable, surface-mountable |
| Connectivity Technology: | Wired, wireless |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, PPP |
| Frequency Band: | 2.4 GHz / 5 GHz |
| Capacity: | Maximum WiFi user capacity: 150 |
| Network / Transport Protocol: | TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, FTP, SMTP, ARP, PPPoE, DHCP, Telnet |
| Routing Protocol: | BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, VRRP, policy-based routing (PBR) |
| Remote Management Protocol: | SSH, Telnet, SMPP, SMNP, MQTT, HTTP, HTTPS, CLI, SSH-2, TR-069, SNMP 1, SNMP 2, SNMP 3, JSON-RPC, Modbus |
| Encryption Algorithm: | WPA3-EAP, WPA3-SAE, WPA2-Enterprise, PEAP, WPA2-PSK, WEP, AES-CCMP, TKIP, IKEv1, IKEv2, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, 192-bit AES-GCM, 256-bit AES-GCM, 128-bit AES-GCM, DES, CBC, RC2, CAST5, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC |
| Authentication Method: | X.509 certificates, TACACS+, RADIUS |
| Features: | USSD support, white list, black list, multiple PDN, band management, auto APN, bridge mode, Access Point operational mode, 2x2 MIMO technology, MAC address filtering, auto-uplink (auto MDI/MDI-X), WOL, H.323 Pass-Through, SIP ALG, DHCP relay, SQM, port forwarding, load balancing, SSHFS support, PSK, DMZ support, IPSec NAT-T, CLI management, port-based VLAN, tagged VLAN, DDoS Protection, mobile quota control, Web Filtering, GRE tunneling, DMVPN, SSTP client instance support, Modbus compatible, DNP3 outstation, DNP3 station, DLMS support, Teltonika RMS, aluminium housing, FOTA, GPS/GLONASS/Galileo/BeiDou/QZSS support |
| Compliant Standards: | UPnP, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.1r, IEEE 802.1s, IEEE 802.11e, IP30, WEEE, ESD, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-3-2:2019+A1:2021, EN IEC 61000-4-11:2020, EN IEC 61000-4-3:2020, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018, RCM, AS/NZS 62368.1:2022 |
| Processor: | 1 x MediaTek MIPS 1004Kc 880 MHz |
| RAM: | 256 MB DDR3 SDRAM |
| Flash Memory: | 16 MB |
| Status Indicators: | WAN, LAN, signal strength, connection status, power, Wi-Fi |
| Type: | Wireless cellular modem |
| Mobile Communication Protocol: | FDD LTE, TDD LTE |
| Generation: | 3G, 4G |
| Cellular Band: | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B32, LTE B38, LTE B40, LTE B41 |
| Max Transfer Rate: | 300 Mbps |
| VoIP Protocols: | H.323, SIP |
| Internet of Things (IoT) Compatible: | Yes |
| Platform: | Clouds of Things, ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core |
| Expansion Slots: | 2 (total) / 2 (free) x Mini-SIM |
| Aerial: | External detachable |
| Antenna Qty: | 5 |
| Power Device: | External power adapter - 18 Watt |
| Included Accessories: | 4 x aerials, 2 x WiFi aerials, GNSS aerial, SIM card adapter kit |
| Cables Included: | 1 x network cable - 1.5 m |
| OS Provided: | RutOS |
| Width: | 11.5 cm |
| Depth: | 9.51 cm |
| Height: | 4.42 cm |
| Тегло, kg: | 0.46 |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 75 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
