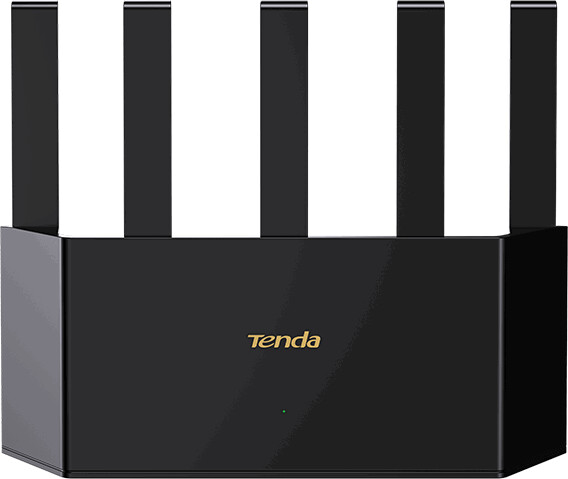

| ROUTER | Router / Рутер |
| GBIT | Gigabit Ethernet Port (RJ45) / Гигабитов лан порт (RJ45) |
| EXTERNAL_ANTENNA | With external antenna / С външни антени |
| 5GHZ | Frequency / Работна честота - 2.4GHz, 5GHz (двубандов) |
| 1201MBPS | Wi-fi maximum speed / Максимална WI-FI скорост - 1201Mbps |
|
|
| Interface | 1x 10/ 100/ 1000Mbps WAN port, 3x 10/ 100/ 1000Mbps LAN ports |
| Wireless | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz |
| Frequency | CE: 2.4G: 2412-2472MHz(CH1-CH13), 5G: 5180-5240MHz(CH36-CH64) FCC: 2.4G: 2412-2462MHz(CH1-CH11), 5G: 5150-5250MHz(CH36-CH64), 5725-5850MHz(CH149-CH165) |
| Data rate | 5GHz:1201Mbps, 2.4GHz:300Mbps |
| Security | WPA2-PSK,WPA3-SAE,WPA3-SAE/WPA2-PSK;Wireless Encryption Disable and Enable;WPS Fast Connection |
| Protocols | IPv4&IPv6 |
| Certifications | CE, FCC,RoHS |
| Standarts | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| LED indicators | 1x LED |
| Antenna | 5x external antennas |
| Transmission mode | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz);FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) |
| Power supply | Input: AC 100-240V~50/60Hz, Output: DC 12V1A |
| Temperature | Operating Temperature : 0℃~40℃, Storage Temperature : -40C ~70℃ |
| Humidity | Operating Humidity : 10 %~90% RH non-condensing, Storage Humidity : 5 %~ 90%RH non-condensing |
| Other | Software;-Internet Connection Type: PPPOE, Dynamic IP, Static IP;-Operating Mode: Wireless Relay Mode (Client+AP);-Parental Control: Client Filter, Remote Web Management;-DHCP: DHCP Server, DHCP Client List, DHCP Static IP Address Reservation and Assignment;-Virtual Server: Port Forwarding, DMZ Host, UPnP;-Firewall: ICMP Flood Attack Defense, TCP Flood Attack Defense, UDP Flood Attack Defense, Ignore Ping Packet From WAN Port;-DDNS: Support DynDNS, No-ip;-VPN: IPSec Transparent Transmission, PPTP Transparent Transmission, L2TP Transparent Transmission, PPTP VPN Server, PPTP VPN Client, L2TP VPN Client |
| Dimensions | 244x 56x 200mm |
|
|
