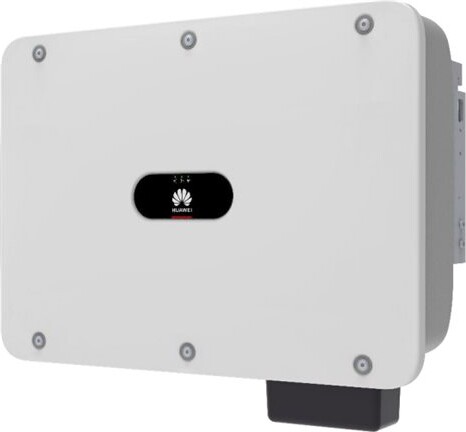

| Device Type: | DC to AC power inverter - external |
| Localisation: | Europe |
| Input Voltage: | DC 600 V |
| Input Voltage Range: | DC 200 - 1000 V |
| Frequency Provided: | 50/60 Hz |
| Input Connectors: | 8 x MC4 |
| Output Voltage: | AC 230/400/480 V 50/60 Hz |
| Power Capacity: | 30000 Watt / 33000 VA |
| Efficiency: | 98.7% |
| Total Harmonic Distortion (THD): | 3 % |
| Remote Management Interface: | RS-485, MBUS |
| Features: | 1100V max input voltage, 200V min startup voltage, surge protection, MPP tracking, input-side disconnection device, anti-islanding protection, over current protection, reverse polarity protection, string fault detection, insulation detection, residual current monitoring, AFCI (Arc Fault Circuit Interrupter), ripple receiver control, integrated PID recovery, LED indicators, convection cooling |
| Compliant Standards: | IP66, EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116, IEC 60068, IEC 61683, IEC 61727, VDE-AR-N-4105, VDE 0126-1-1, UTE 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, RD 413, EN 50438, C10/11, MEA, NRS 097-2-1, AS/NZS 4777.2, DEWA |
| Min Operating Temperature: | -25 °C |
| Max Operating Temperature: | 60 °C |
| Humidity Range Operating: | 0 - 100% RH |
| Width: | 64 cm |
| Depth: | 27 cm |
| Height: | 53 cm |
| Тегло, kg: | 43 |
