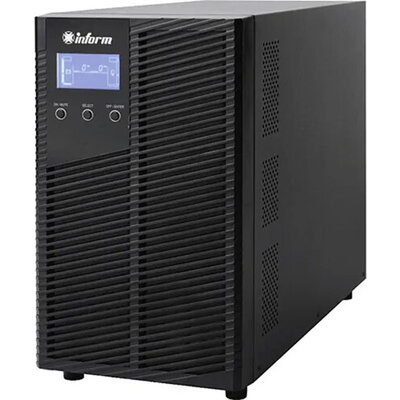

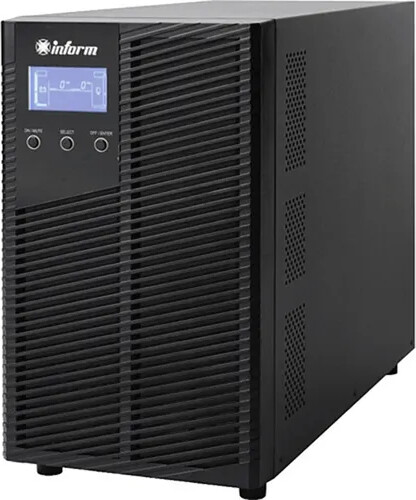

UPS İnform SINUS EVO SES220 2KVA ON-LINE

UPS İnform SINUS EVO SES220 2KVA ON-LINE

  • Производител:
    İnform
  • Гаранция:
    2 години
539,76 лв. (275,97€)
На склад Код: 85992
Безплатна доставка!
Кредитен калкулатор DSK Credit

Описание

SINUS EVO SES220 2KVA ON-LINE - INFORM UPS ONLINE 2000VA PURE_SINE_WAVE 2xSCHUKO 3xIEC-320 RS-232 USB_PORT RJ-45


Спецификация

InputInput Voltage Range 120- 300VAC;Input Frequency Range 40Hz ~ 70Hz;Phase 1PH - N – PE;Power Factor ≥ 0.99 @ nominal input voltage
OutputOutput Voltage 110/115/120/127VAC or 208/220/230/240VAC;Voltage Regulation ±2% (Online Mode), ±1% (Battery Mode);Frequency 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range);Frequency (@Battery Mode) 50 Hz ± 0.5% or 60Hz ± 0.5%;Overload 105%~110%: 10 minute ,110%~130%: 1 minute, >130%: 3 second;Crest Factor 03:01;THDv ≤ 3 % THD (linear load); ≤ 6 % THD (non-linear load);Outputs 3xIEC Type + 1xSchuko;Eco Mode Present;Frequency Converter Present
BatteryBattery Type 12 V / Maintenance-free lead acid batteries;QTY 4 x 9Ah;Charge Time 4 hour 90% capacity (typical);Charge Current 1.0 A (max.);Automatic Battery Test Present (@ start-up, 1/per week);External Battery Optional, with battery connector;Charge Voltage 54.7 VDC ±1%;
EnvironmentTemperature 0- 40°C (20 to 25 recomended for longer battery life time);Humidity 95 % RH (non-condensing);Noise Level (1m distance) <50dBA
Dimensions397 x 145 x 220 mm
OtherEFFICIENCY Online Mode 90%, Battery Mode 88%

Спецификация

Тегло: 9.80 kg
MPN: SINUS EVO SES220
EAN: 879011002000
Производител: İnform
