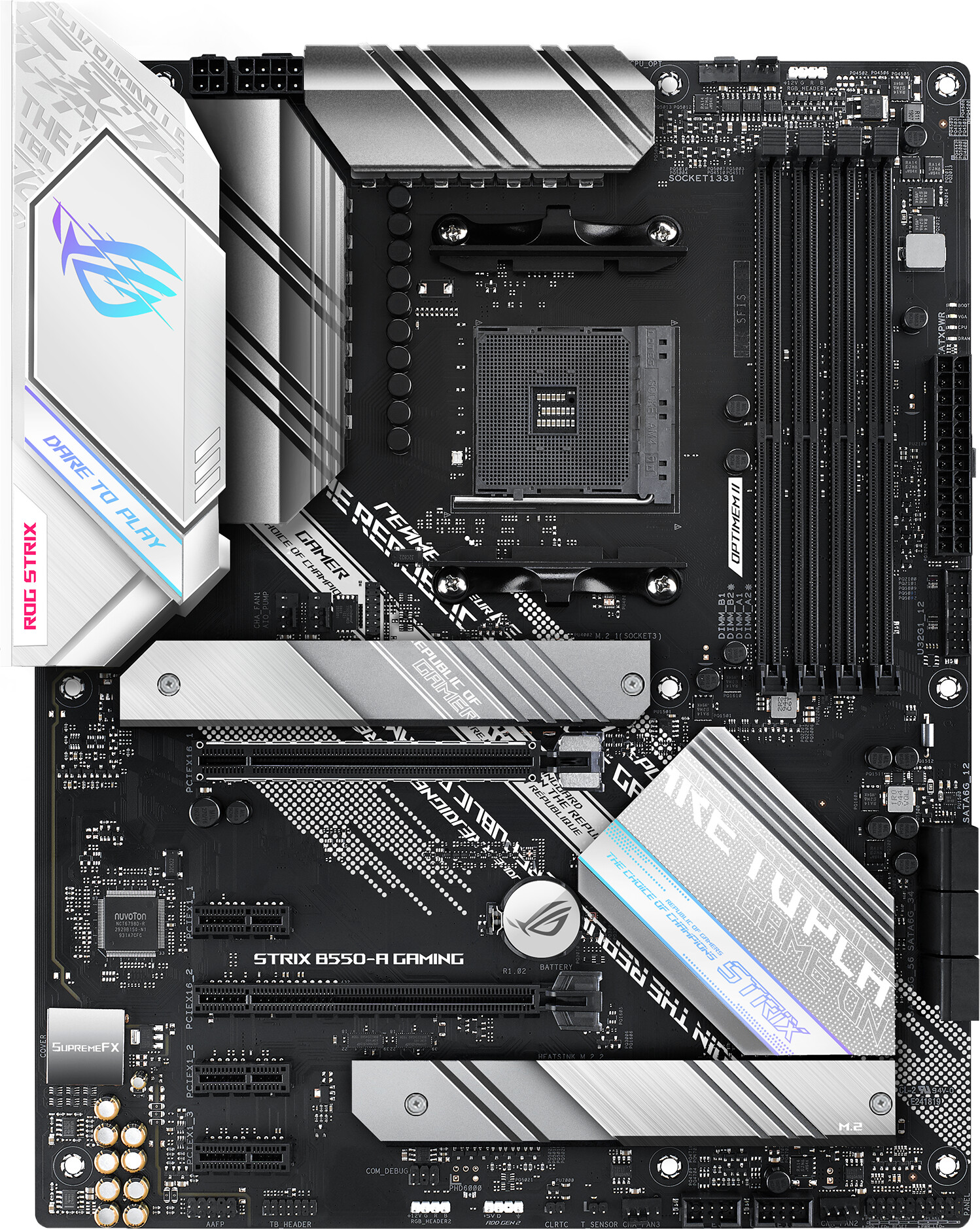

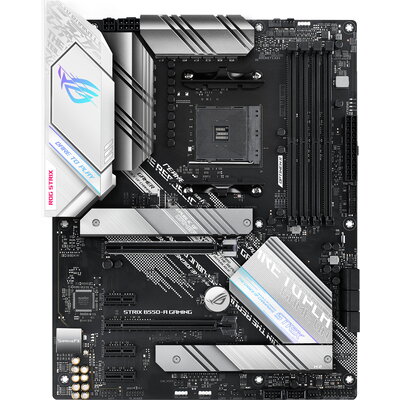

Дънна платка ASUS ROG STRIX B550-A GAMING
Дънна платка ASUS ROG STRIX B550-A GAMING
Дънна платка ASUS ROG STRIX B550-A GAMING
Дънна платка ASUS ROG STRIX B550-A GAMING
Дънна платка ASUS ROG STRIX B550-A GAMING

Дънна платка ASUS ROG STRIX B550-A GAMING

  • Сокет:
    AMD AM4
  • Чипсет:
    AMD B550
  • Аудио:
    ROG SupremeFX 8-Channel Audio S1220A
  • Мрежова връзка:
    Intel I225-V 2.5Gb Ethernet
  • Форм фактор / Размери:
    ATX / 12 x 9.6 inch ( 30.5 x 24.4 cm )
  • Производител:
    ASUS
  • Гаранция:
    3 години

Тагове: Дънни платки ASUS, AMD AM4, ATX, AMD B550

Продуктът е изчерпан и не може да бъде поръчан!
(Код: 25480)

Описание

AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB

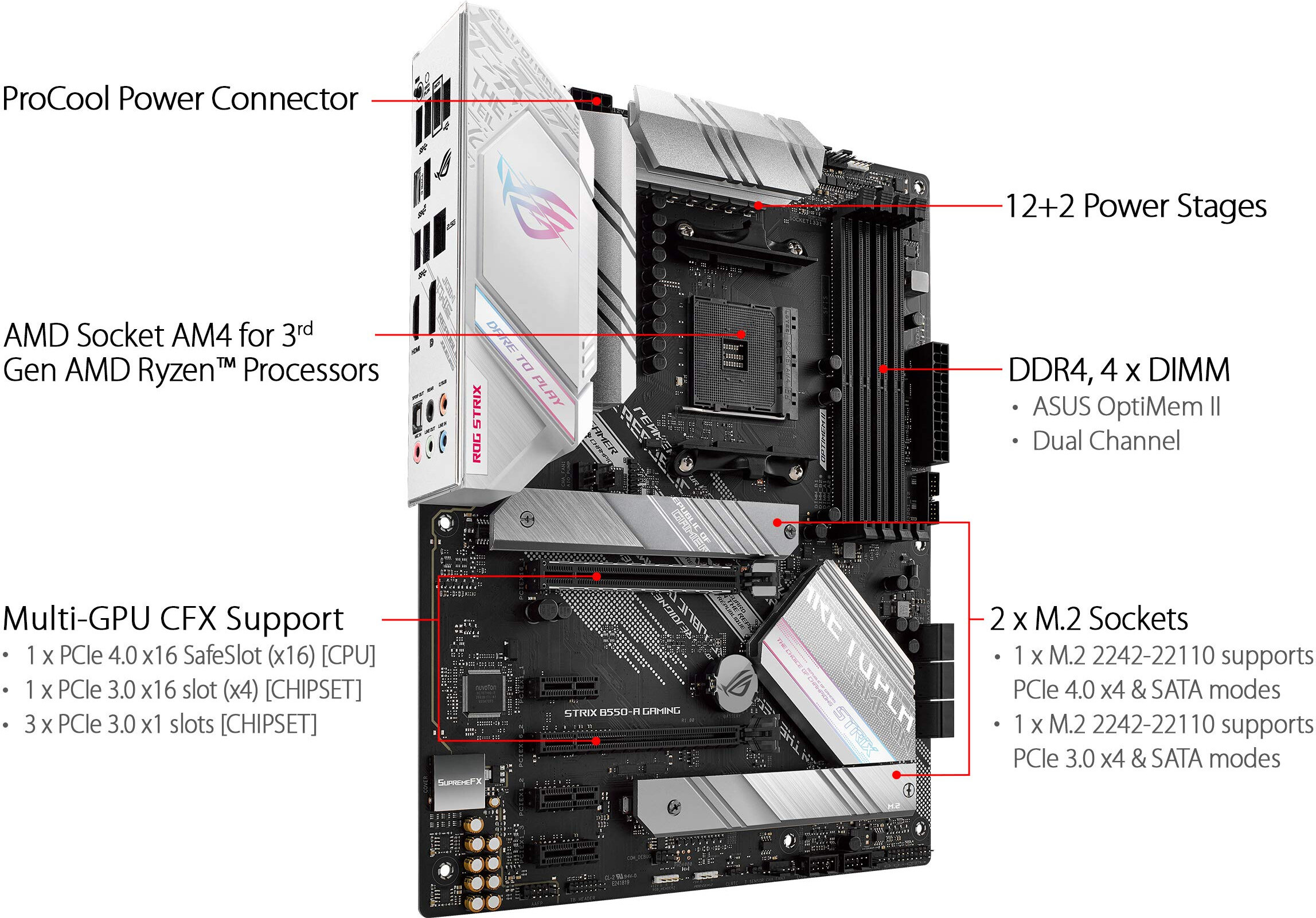

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
  • Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
  • Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and addressable Gen 2 RGB header

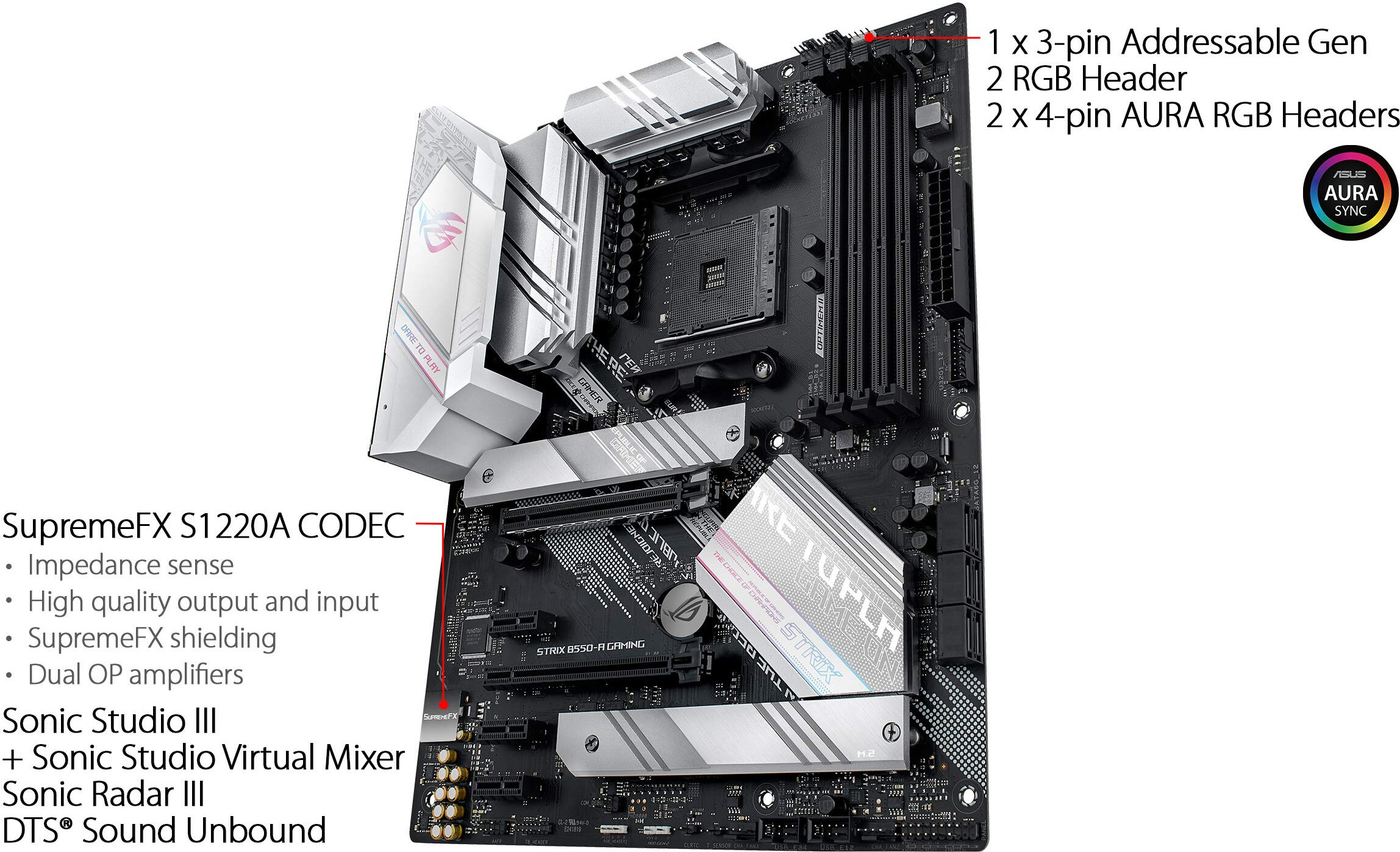

  • Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

Designed for those seeking to get the most out of their build, ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0 connectivity. Offering robust power delivery and effective cooling, ROG Strix B550-A Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. As an added bonus, outstanding performance is complemented by a stunning silver-and-white finish and cyberpunk-inspired aesthetics that present a standout look.

Спецификация

Сокет: AMD AM4
Чипсет: AMD B550
Процесори: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Поддържана памет: 4 x DIMM, Max. 128GB, DDR4 5100 (O.C.) MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Аудио: ROG SupremeFX 8-Channel Audio S1220A
Мрежова връзка: Intel I225-V 2.5Gb Ethernet
Вградена графика: Integrated Graphics Processor: 1 x HDMI 2.1(4K@60HZ), 1 x DisplayPort 1.2
Слотове за периферия: 1 x PCIe 4.0 x16
2 x PCIe 3.0 x16
3 x PCIe 3.0 x1

* Supports AMD 2-Way CrossFireX Technology
Интерфейс за данни: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA3 6.0 Gb/s

* Support Raid 0, 1, 10

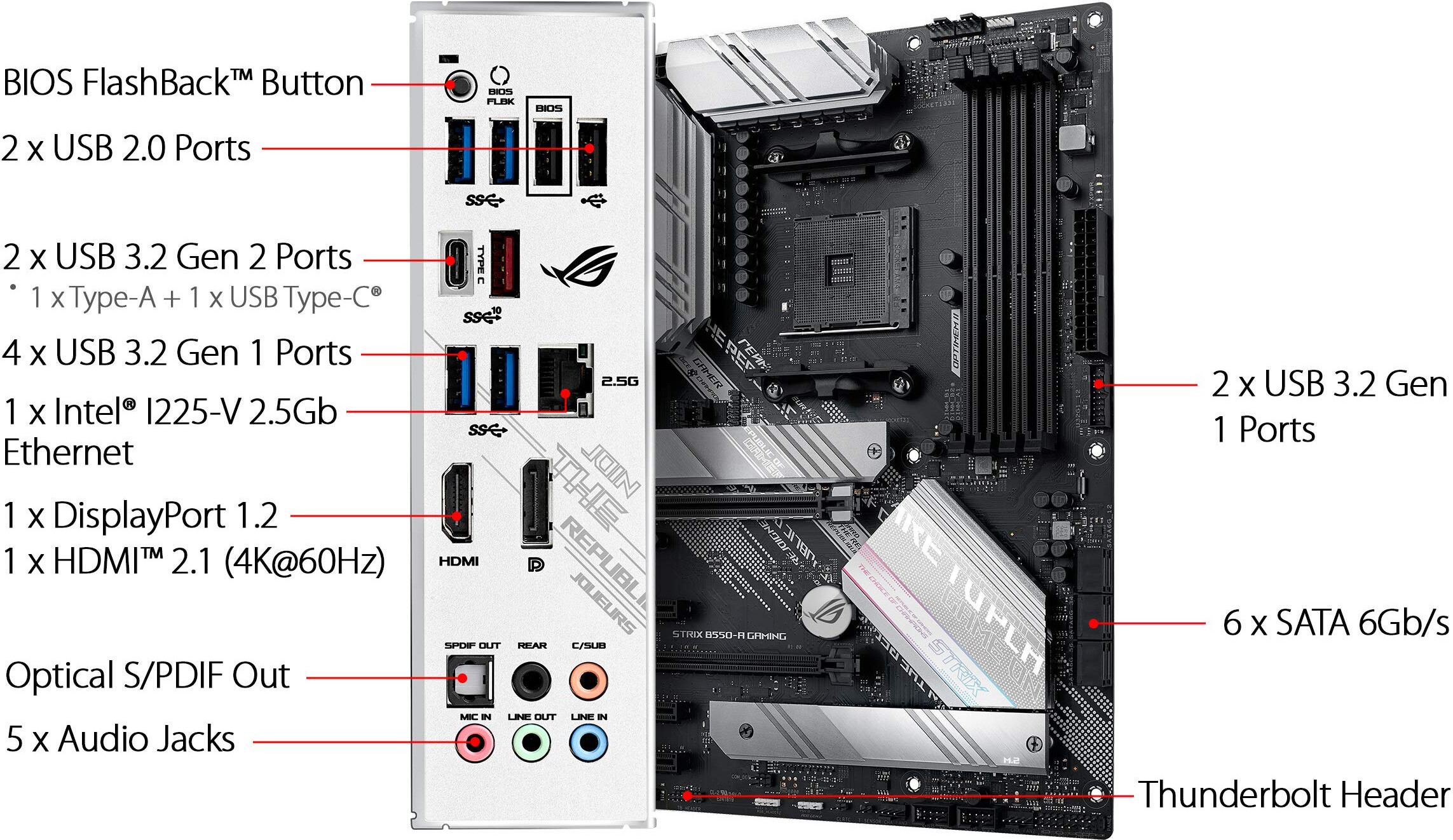

Изходи на задния панел: 1 x BIOS FlashBack™ Button(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
5 x Gold-plated audio jacks
Вътрешни I/O конектори: 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Операционна система: Microsoft® Windows® 10 64-bit
Форм фактор / Размери: ATX / 12 x 9.6 inch ( 30.5 x 24.4 cm )

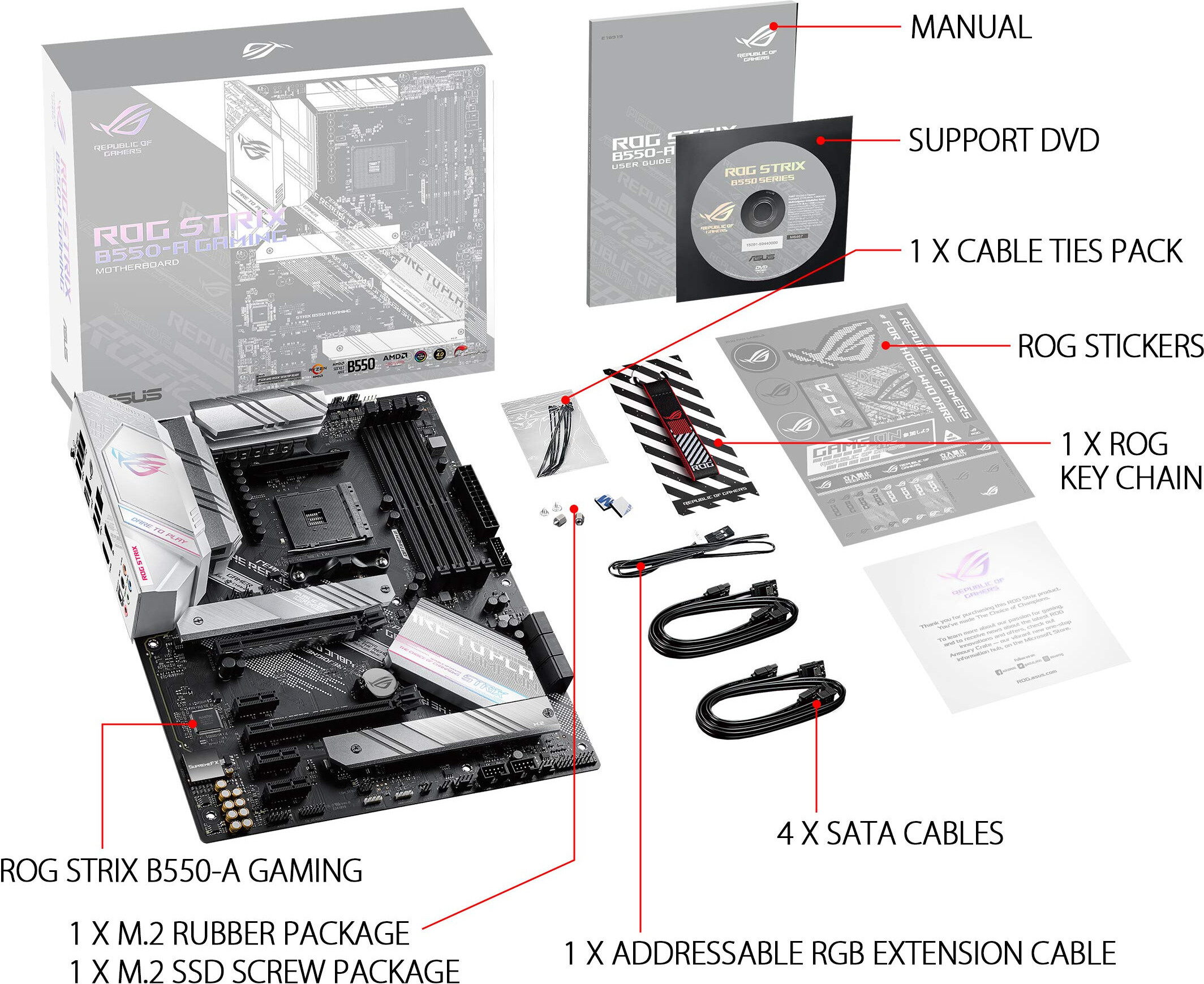

Комплекта включва: 1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
MPN: 90MB15J0-M0EAY0
EAN: 4718017826594
Производител: ASUS

Тагове: Дънни платки ASUS, AMD AM4, ATX, AMD B550
