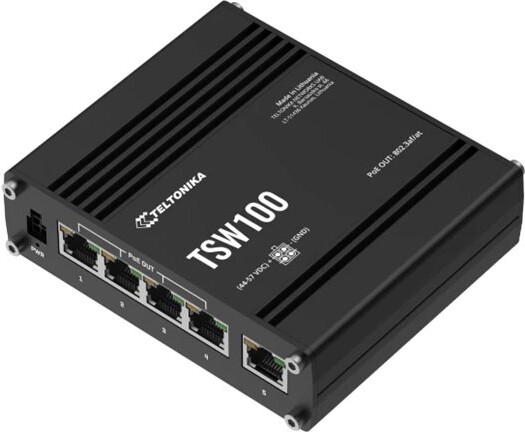

| Device Type: | Switch - 5 ports - unmanaged |
| Enclosure Type: | DIN rail mountable, surface-mountable, wall-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 5 x 10/100/1000 (4 PoE) |
| Power Over Ethernet (PoE): | PoE |
| PoE Budget: | 120 W |
| Performance: | Non-blocking bandwidth: 10 Gbps |
| Capacity: | Packet buffer size: 128 KB |
| MAC Address Table Size: | 2K entries |
| Jumbo Frame Support: | 9216 bytes |
| Features: | Auto-uplink (auto MDI/MDI-X), PROFINET, ground points, aluminium housing |
| Compliant Standards (General): | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Compliant Standards (Miscellaneous): | IP30, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, ANATEL, CB, E Mark, EN 55032:2015, EN 55035:2017, EN 301 489-1 V2.2.3, EN 61000-4-2:2009, EN IEC 61000-4-3:2006 + A1:2008 + A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-11:2004, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020 |
| Status Indicators: | Power, status |
| Power Device: | External power adapter |
| Power Provided: | 62 Watt - DC 48 V - 1.3 A |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Electric Current Required: | 1.5 A |
| Localisation: | Europe |
| Width: | 11.5 cm |
| Depth: | 10.12 cm |
| Height: | 3.22 cm |
| Тегло, kg: | 0.35 |
| Shipping Width: | 17.5 cm |
| Shipping Depth: | 15 cm |
| Shipping Height: | 3.5 cm |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 75 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
